PRODUCTS

Find Products

I want to find
for use in

Energy Metering

High Accuracy Current Transformers for whole current measurements in energy metering .

Nominal Current
Turn Ratio
Accuracy



Energy Metering

Product No Ip (A) Turn Ratio Rb Pri. Opening Secondary Resistance Temp. Operating AE % PE (Deg) Secondary Termination Mounting Type

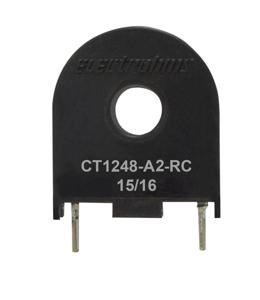

CT1248-A2-RC 10 1 : 1500 75 Ω 5.0 mm 45 - 60 Ω -40 ... +85°C 0.2 0.5 Pin Terminals PCB
CT1248-A2-RC

High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .


CT1052-A1 20 1 : 2500 90 Ω 6.3 mm 120 - 145 Ω -10° ... +60°C 0.5 0.5 Pin Terminals PCB
CT1052-A1

High Accuracy Current Transformers for whole current measurements in energy metering .

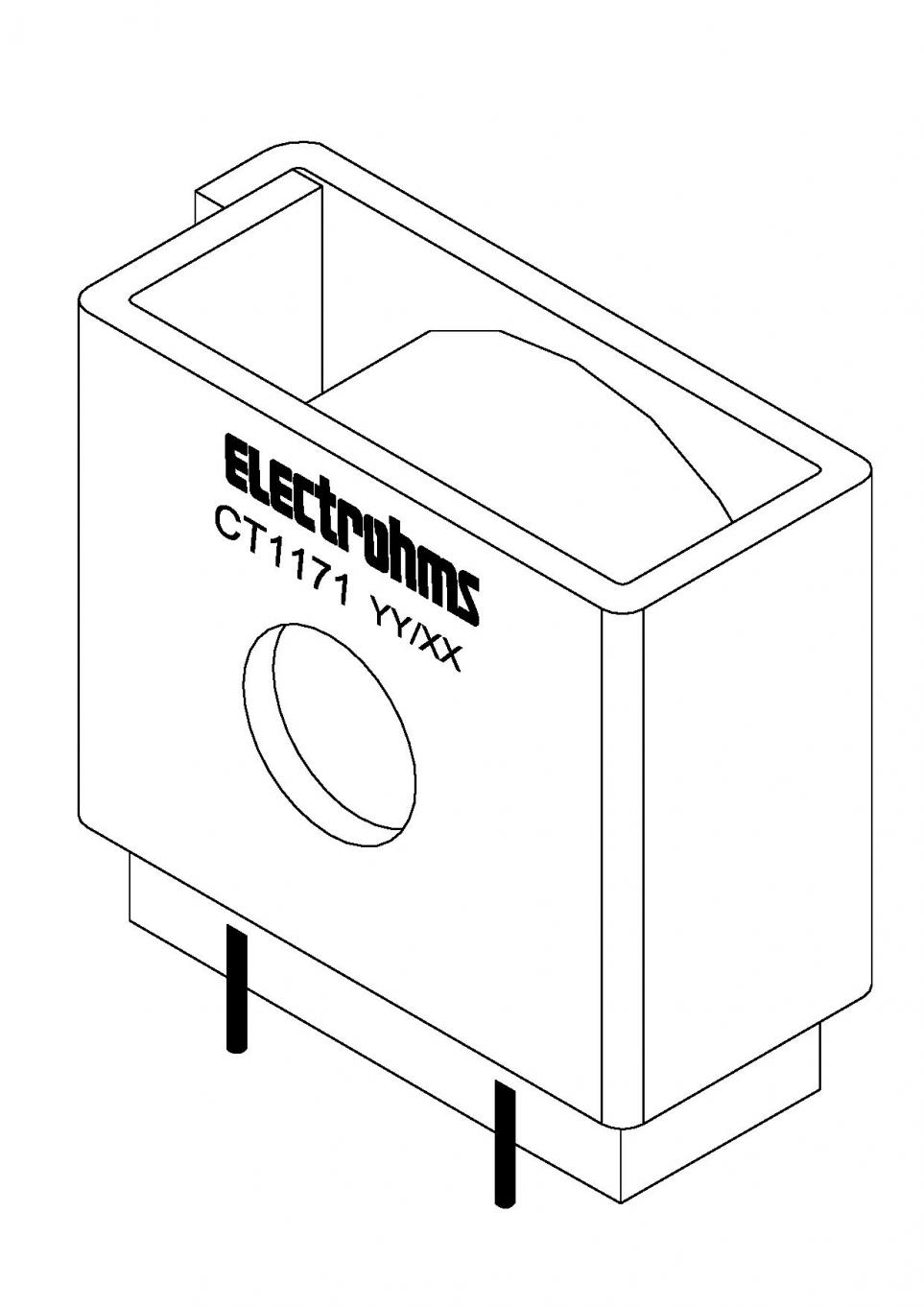

CT1171- C1 20 1 : 2500 90 Ω 6.3 mm 98 - 120 Ω -10° ... +60°C 0.5 0.5 Pin Terminals PCB
CT1171- C1

High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .

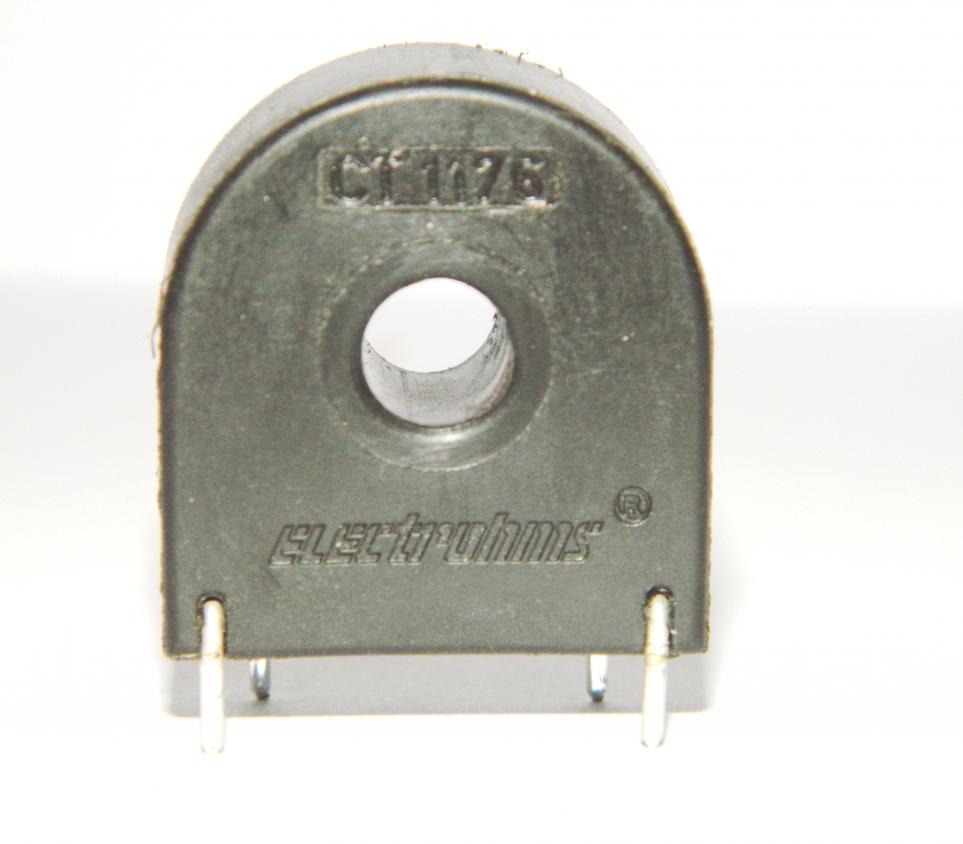

CT1176-RC 20 1 : 2500 90 Ω 6.3 mm 98 - 120 Ω -40° ... +85°C 0.5 0.5 Pin Terminals PCB
CT1176-RC

High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .

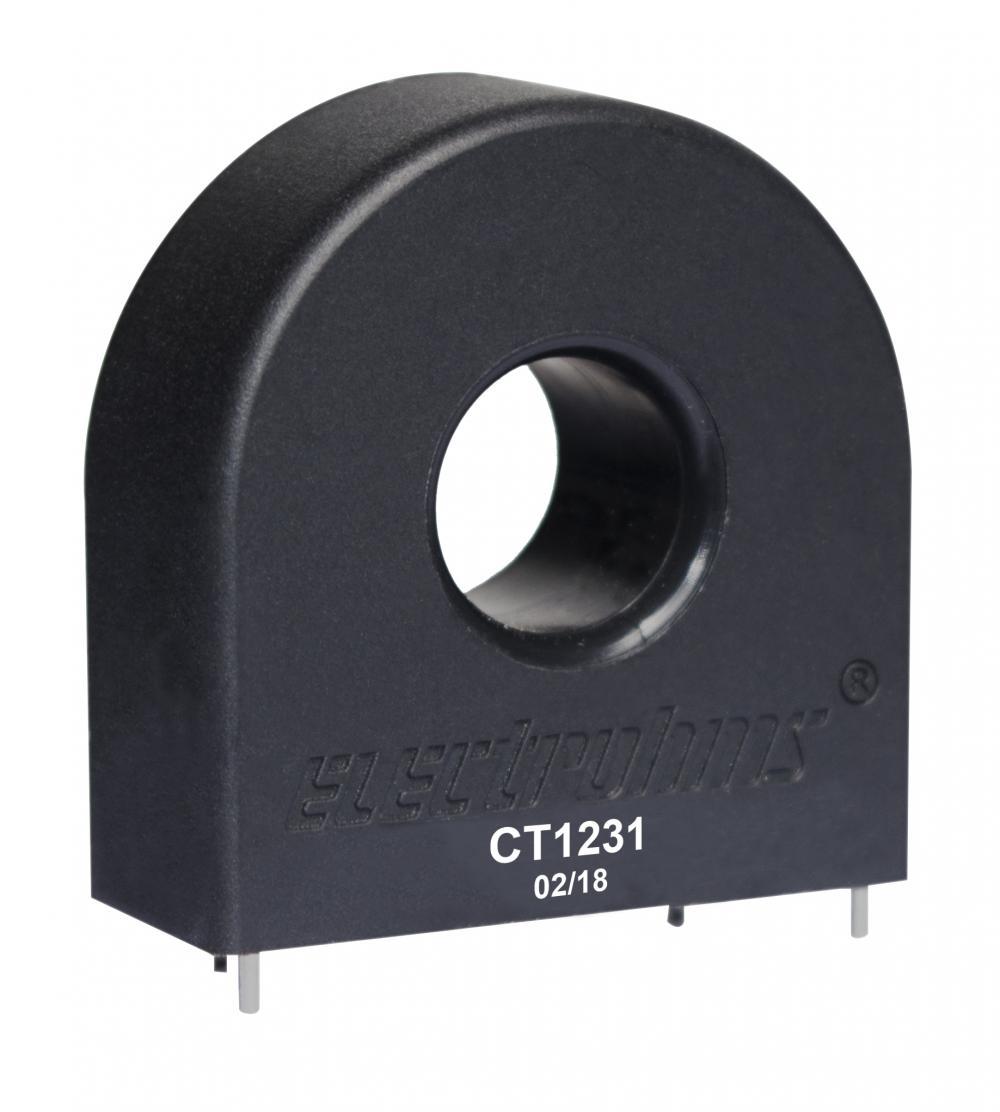

CT1231-A1 30 1 : 2500 30 Ω 6.3 mm 105 - 135 Ω -10° ... +60° C 0.3 1.0 Pin Terminals PCB
CT1231-A1

Current transformers for energy meters single phase and three phase metering in Residential Metering applications.

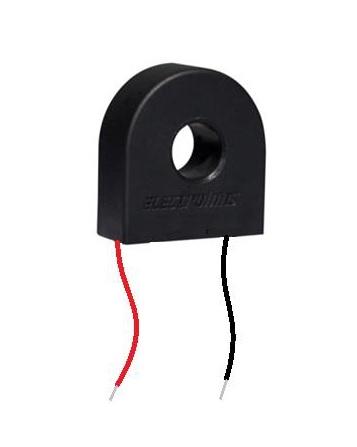

CT1232-A1 30 1 : 2500 30 Ω 6.3 mm 105 - 135 Ω -10° ... +60° C 0.3 1.0 Flylead ...
CT1232-A1

Current transformers for energy meters single phase and three phase metering in Residential Metering applications.

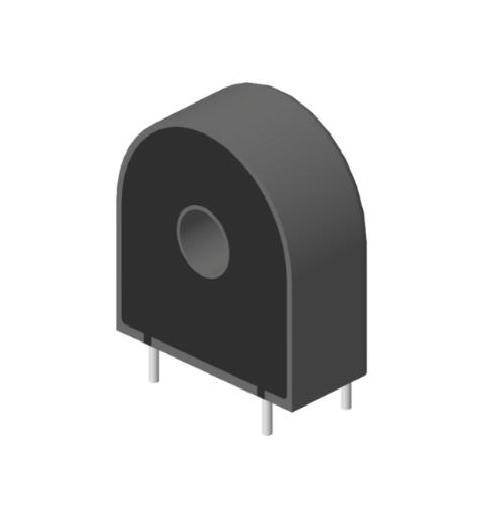

CT1316-RC 40 1 : 2500 100 Ω 6.3 mm 104 - 136 Ω -40° ... +85° C 0.1 0.25 Pin Terminals PCB
CT1316-RC

High Accuracy Current Transformers for whole current measurements in energy metering .

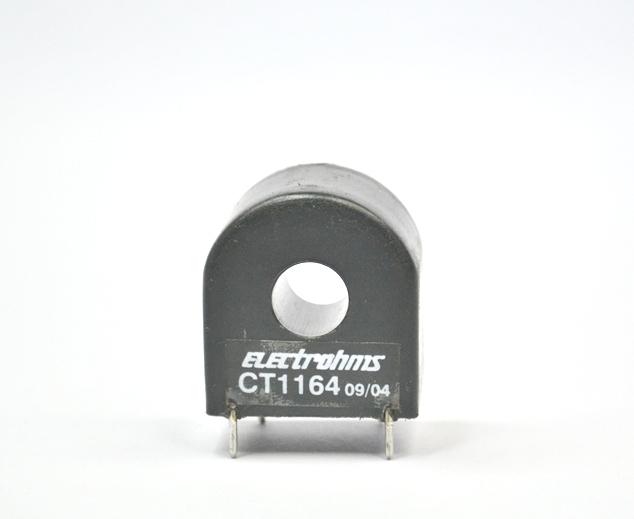

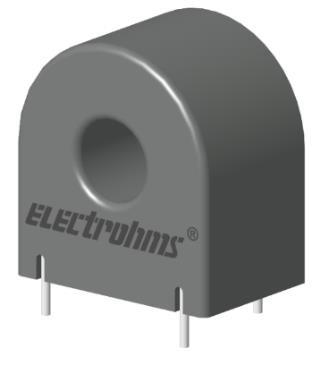

CT1164-A1-RC 60 1 : 2500 37.5 Ω 9.0 mm 62 - 75 Ω -40 ... +85°C 0.1 0.2 Pin Terminals PCB
CT1164-A1-RC

High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .

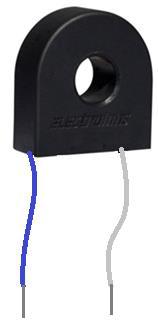

CT1295-A1-RC 60 1 : 2500 37.5 Ω 9.0 mm 62 – 75 Ω -40 ... +85° C 0.1 0.2 Flylead ...
CT1295-A1-RC

Current Transformers are suitable for the measurement of AC current with galvanic isolation. CT1295-A1-RC have high accuracy, with low ratio and phase error.

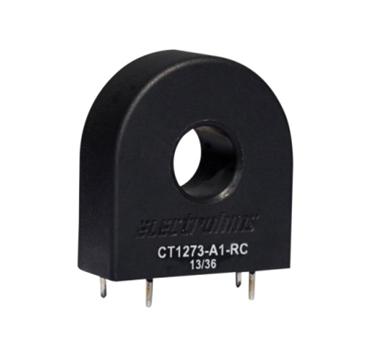

CT1273-A1-Rc 100 1 : 2500 7.5 Ω 11.5 mm 37 - 47 Ω -40° ... +85°C 0.1 0.2 Pin Terminals PCB
CT1273-A1-Rc

High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .


CT1275-A1-RC 100 1 : 2500 7.5 Ω 11.5 mm 37 - 47 Ω -40 ... +85°C 0.1 0.20 Flyleads ---
CT1275-A1-RC

High-end metering current transformers: High accuracy current transformers for whole current measurements in energy metering.

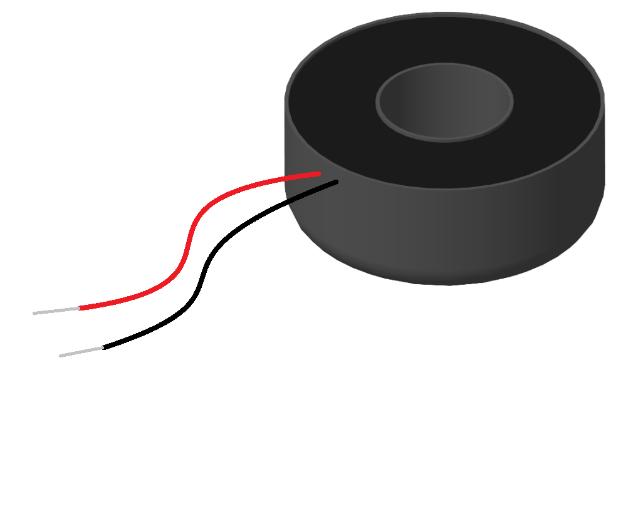

CT1216-A1-RC 300 1 : 2000 6.8 Ω 19.3 mm 21 Ω -40 ... +85°C 0.1 0.1 Flyleads ---
CT1216-A1-RC

High Accuracy Current Transformers for whole current measurements in energy metering .





Custom Design

When an off-the-shelf component won't work, we can partner with you to design and produce custom products for your unique needs. Whether your challenge is regulatory compliance or technology innovation, we can help to reduce time to market and improve your bottom line.

We carefully investigate the design objectives based on the inputs received from you.
Based on cost, size, packaging, electrical performance, certification or approvals required, we create a template of product design
Quote submitted with clear specifications, lead times for prototype and production batches, along with commercials
Rapid prototyping ensures quick shipment and reduction in approval time.
After acceptance of prototypes, a test and acceptance criteria is prepared and same is set up for the regular production batches by our production and Quality assurance team
We ensure that the product required is delivered within the accepted schedule. Hence, if you require a customized solution, we are the right organization to be contacted
