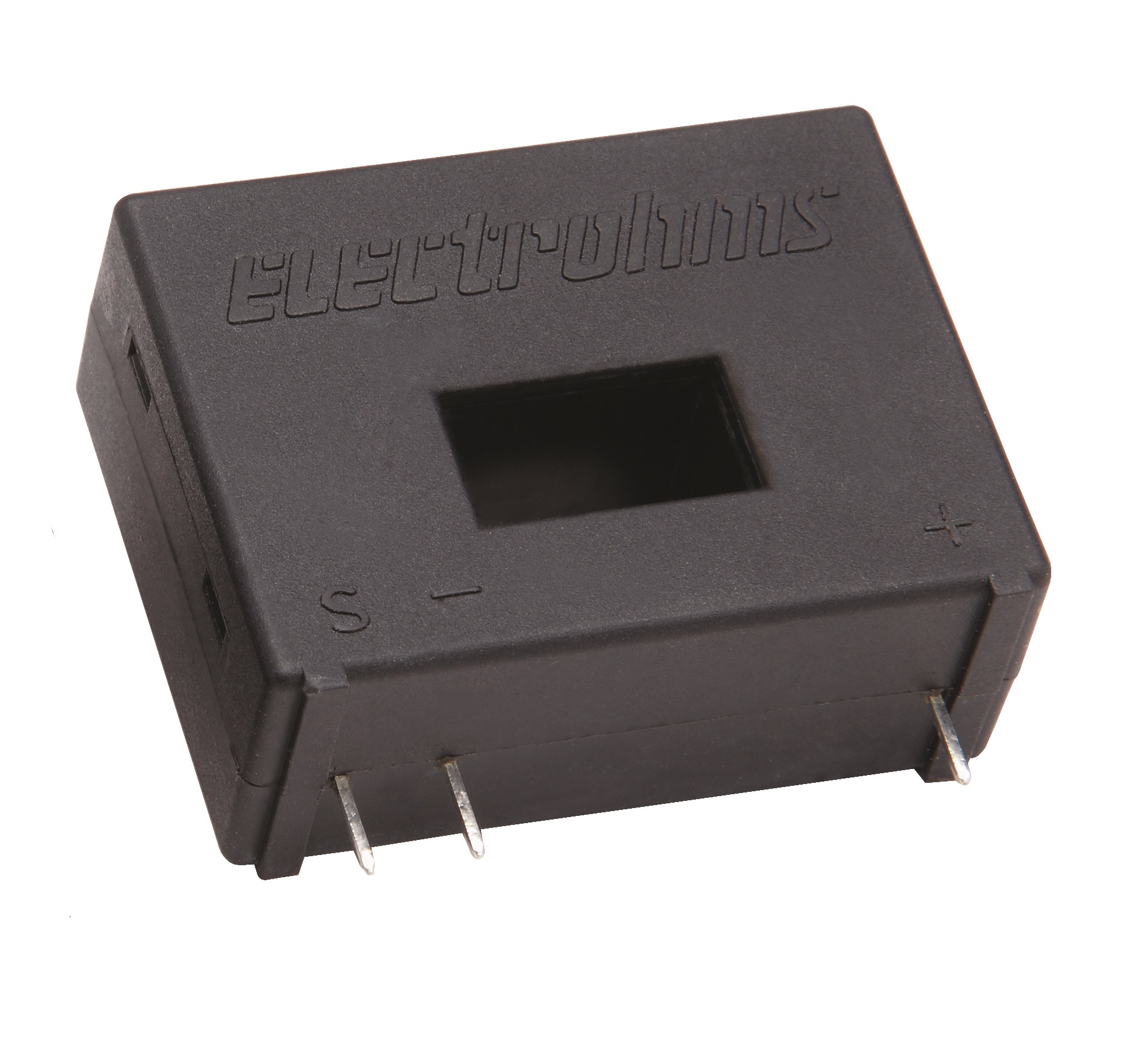

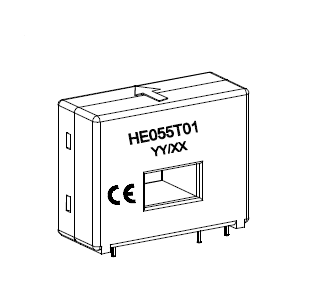

HE055T01

Hall Effect Current Sensors Closed Loop Current Sensor

Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc.

SPECIFICATION

Product No HE055T01
Nominal Input (Ipn) 50 Arms
Max Input (Ip) ± 70 A
Supply Voltage ±12 ... ± 15 V
Output @Ipn 50 mA
Bandwidth -3dB DC - 200 kHz
Accuracy ± 0.65 %
Secondary Termination Pin Terminals
Mounting Type PCB

KEY FEATURES

  • DC, AC and pulse current measurements with galvanic isolation.
  • Good accuracy and excellent linearity.
  • No insertion loss.
  • Low temperature drifts.
  • High bandwidth
  • Fast response time

RELATED APPLICATION

  • Solar String monitoring
  • Off grid inverters
  • Industrial automation
  • Electronic Rectified Regulated Unit (ERRU)
