SPECIFICATION

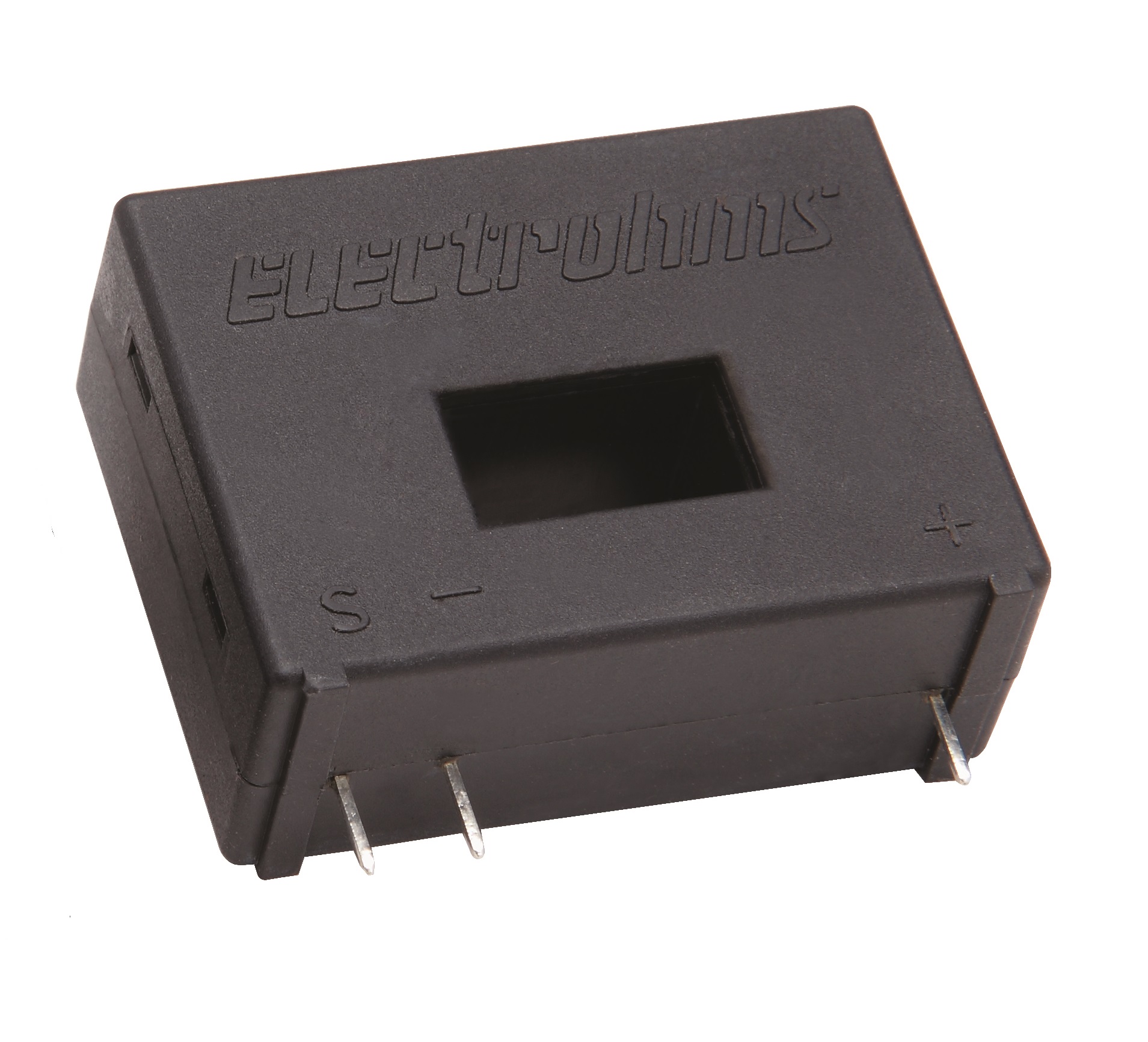

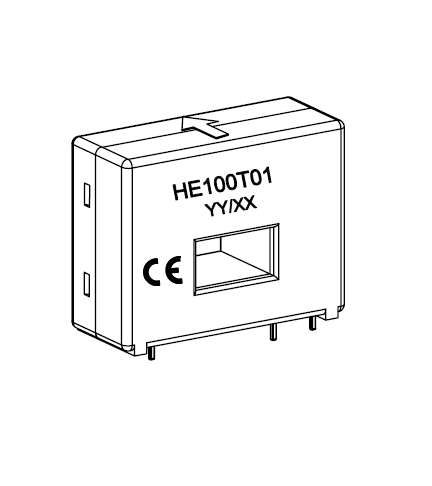

| Product No | HE100T01 |
|---|---|
| Nominal Input (Ipn) | 100 Arms |
| Max Input (Ip) | ± 150 A |
| Supply Voltage | ±12 ... ± 15 V |
| Output @Ipn | 50 mA |
| Bandwidth -3dB | DC - 200 kHz |
| Accuracy | ± 0.65 % |
| Secondary Termination | Pin Terminals |
| Mounting Type | PCB |
KEY FEATURES
- DC, AC and pulse current measurements with galvanic isolation.
- Good accuracy and excellent linearity.
- No insertion loss.
- Low temperature drifts.
- High bandwidth
- Fast response time
RELATED APPLICATION
- Solar String monitoring
- Off grid inverters
- Industrial automation
- Electronic Rectified Regulated Unit (ERRU)
