SPECIFICATION

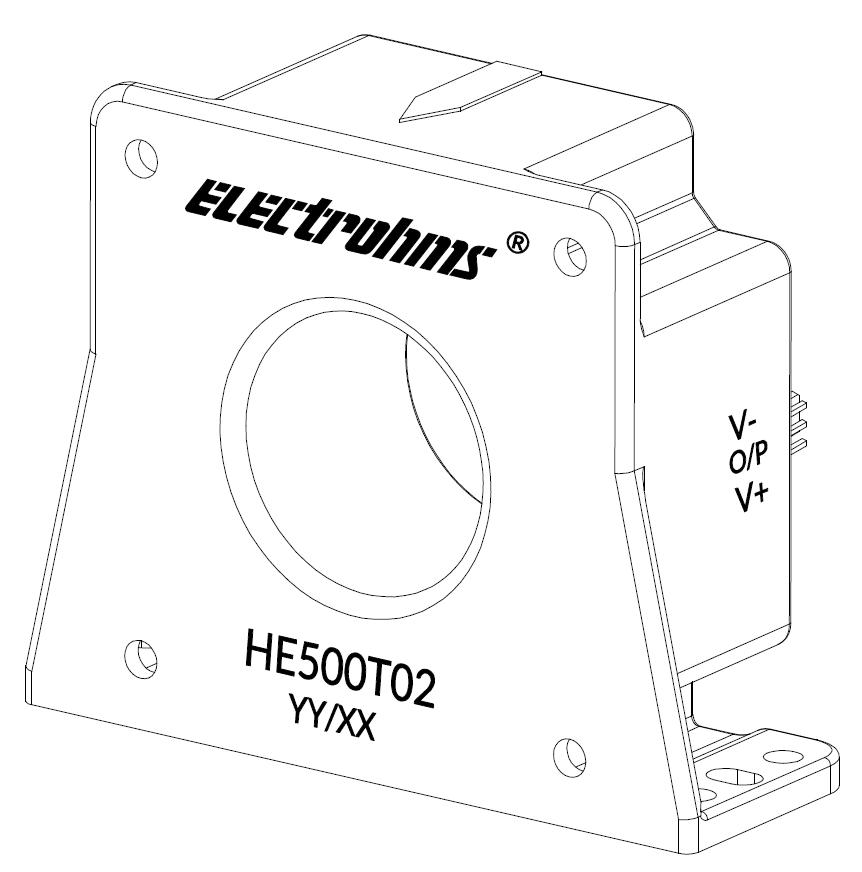

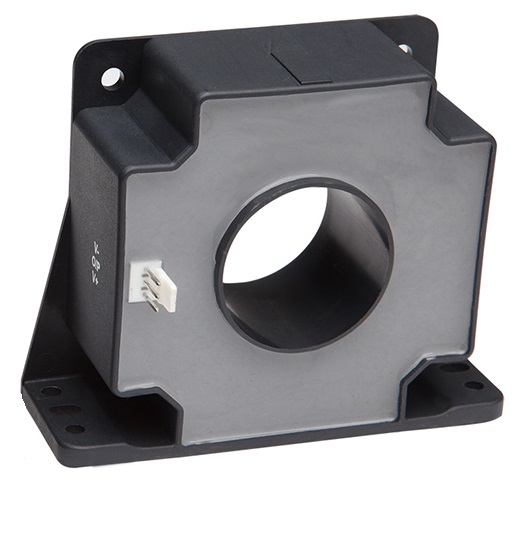

| Product No | HE500T02 |
|---|---|
| Nominal Input (Ipn) | 500 Arms |
| Max Input (Ip) | ± 800 A |
| Supply Voltage | ±15 ... ± 24 V |
| Output @Ipn | 100 mA |
| Bandwidth -3dB | DC - 100 kHz |
| Accuracy | ± 0.60 % |
| Secondary Termination | Connector Header |
| Mounting Type | Panel |
KEY FEATURES
- DC, AC and pulse current measurements with galvanic isolation.
- Good accuracy and excellent linearity.
- No insertion losses .
- low temperature drifts.
- High bandwidth
- Fast response.
RELATED APPLICATION
- Industrial inverters/UPS
- AC/DC drives
- Central inverters
- Converters for wind energy
