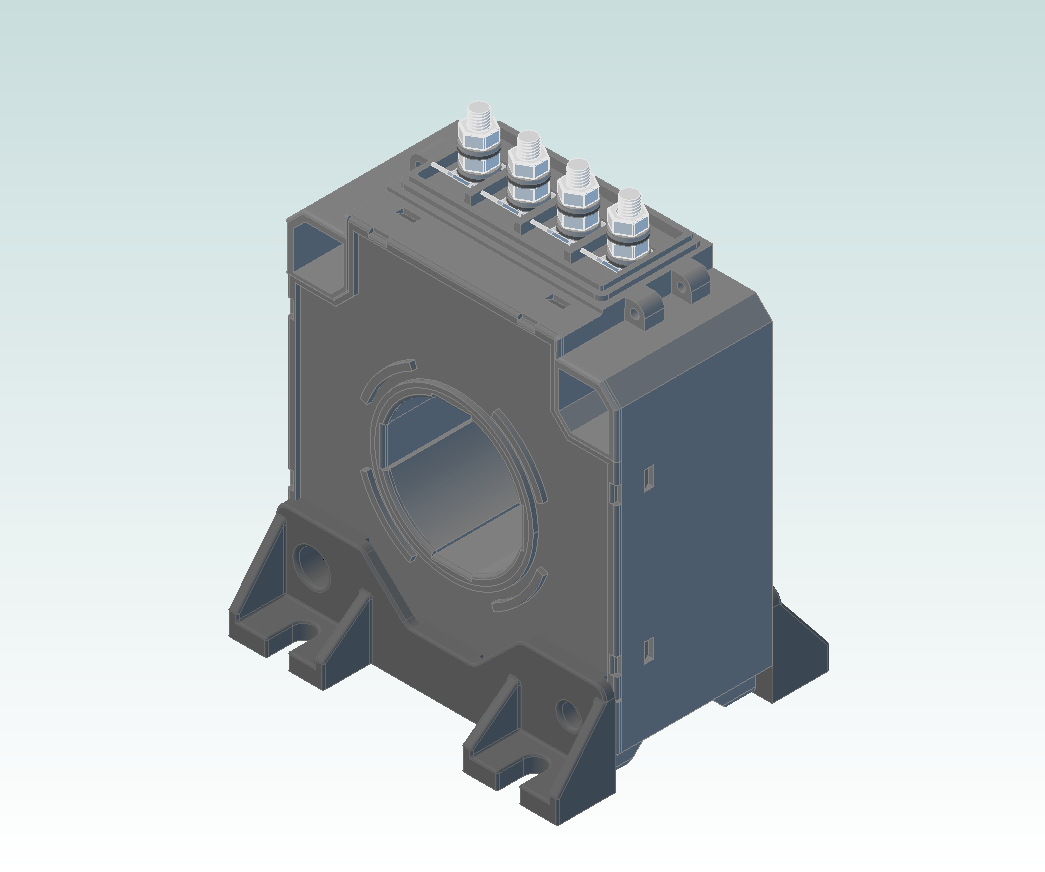

HED1K3T01

Hall Effect Current Sensors Closed Loop Current Sensor

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.




SPECIFICATION

Product No HED1K3T01
Nominal Input (Ipn) 1300 Arms
Max Input (Ip) ± 3000 A
Supply Voltage ±15 ... ± 24 V
Output @Ipn 325 mA
Bandwidth -3dB DC - 100 kHz
Accuracy ± 0.80 %
Secondary Termination M5 stud with faston Tab
Mounting Type Panel

KEY FEATURES

  • DC, AC and pulse current measurements with galvanic isolation.
  • Good accuracy and excellent linearity.
  • No insertion loss.
  • Low temperature drifts.
  • High bandwidth
  • Fast response time

RELATED APPLICATION

  • Traction converters
  • Industrial inverters/UPS.
  • AC/DC drives
  • Central inverters
  • Converters for wind energy
