SPECIFICATION

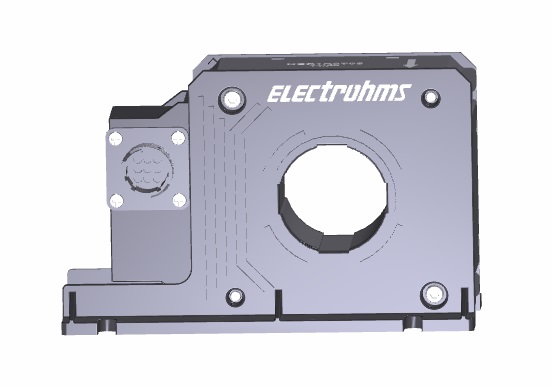

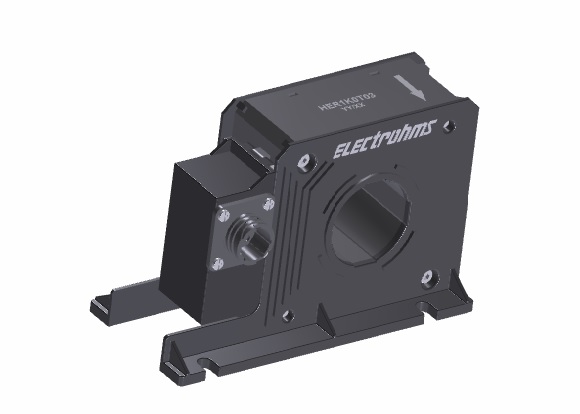

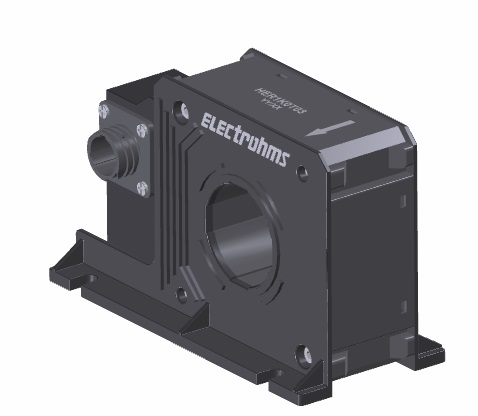

| Product No | HER1K0T03 |
|---|---|
| Nominal Input (Ipn) | 1000 Arms |
| Max Input (Ip) | ± 2000 A |
| Supply Voltage | ± 24 V |
| Output @Ipn | 200 mA |
| Bandwidth -3dB | DC - 100 kHz |
| Accuracy | ± 0.30 % |
| Secondary Termination | AMP Connectors |
| Mounting Type | Panel |
KEY FEATURES
- DC, AC and pulse current measurements with galvanic isolation.
- Good accuracy and excellent linearity.
- No insertion loss.
- Low temperature drifts.
- High bandwidth
- Fast response time
RELATED APPLICATION
- Traction converters
- Industrial inverters/UPS.
- AC/DC drives
- Central inverters
- Converters for wind energy
