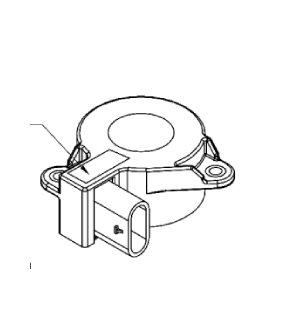

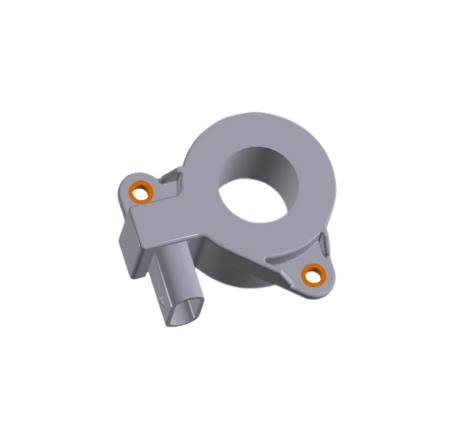

HLG075/1K0T01

Hall Effect Current Sensors Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, panalized, and low power consumption and are especially advantageous when measuring high currents.





SPECIFICATION

Product No HLG075/1K0T01
Nominal Input (Ipn) 75 A, 1000 A
Max Input (Ip) ± 1000
Supply Voltage 5 V
Output @Ipn  + 2.0 V
Bandwidth -3dB 70 Hz
Accuracy ±1 %
Secondary Termination Rectangular Connector Housing
Mounting Type Panel

KEY FEATURES

  • Used for measurement of electric AC/DC current
  • Open loop current sensor
  • Pulsed in electric & electronic equipment
  • Voltage output
  • PCB mounting type
  • Plastic outer case complaint to UL94-V0
  • Dual Current range

RELATED APPLICATION

  • Used for measurement of electric DC current
  • Pulsed in electric & electronic equipment
